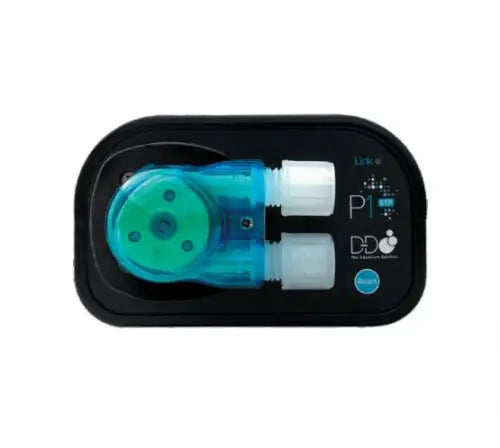

D-D P1-STP Continuous Use Peristaltic Pump

The D-D P1-STP is an app-controlled peristaltic pump, with direct Wi-Fi or Cloud connectivity.

The direct drive stepper motor allows continuous 24/7 running, ideal for supplying water to equipment requiring constant flow rates such as calcium reactors or nitrate reactors . It can also be used in dosing mode as a high precision dosing pump.

Features

• Continuous, Manual or Automatic dosing modes
• Suitable for 24/7 continuous use
• Adjustable flow/dosing rates in continuous or programmable mode
• Dosing frequency, daily / every ‘X’ days / specific days
• Up to 24 dosing points per day
• Custom dosing period
• Calculates and displays remaining liquid in dosing container
• Direct-drive pump head for greater accuracy
• Pharmed BPT long life pump tubing
• Threaded connections on pump head for greater security
• Calibration function
• Battery backup feature to retain correct time

Specification

• Single head , continuous use, stepper motor peristaltic pump
• Flow rate in continuous mode 1-70ml/min
• Dosing volume 0.1ml – 9999ml, in programmable mode
• Uses the Kamoer Remote App which supports IOS and Android
• Dosing accuracy <+/- 2%
• Compact footprint:      L 100mm x W 90mm x H 60mm
• Connections for 3mm x 5mm hose

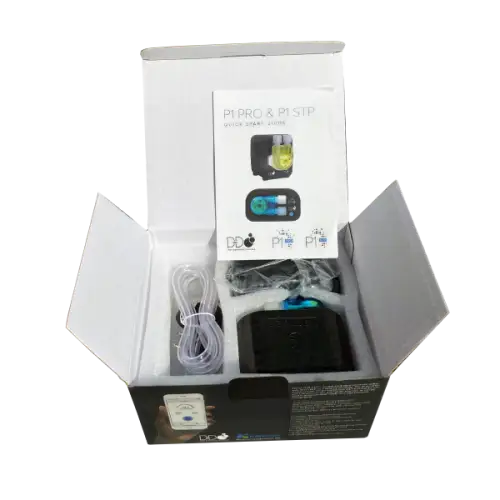

Included In The Box

• P1-STP peristaltic pump
• Power adapter
• 2m of 3mm x 5mm PVC tube
• Measuring cylinder for calibration
