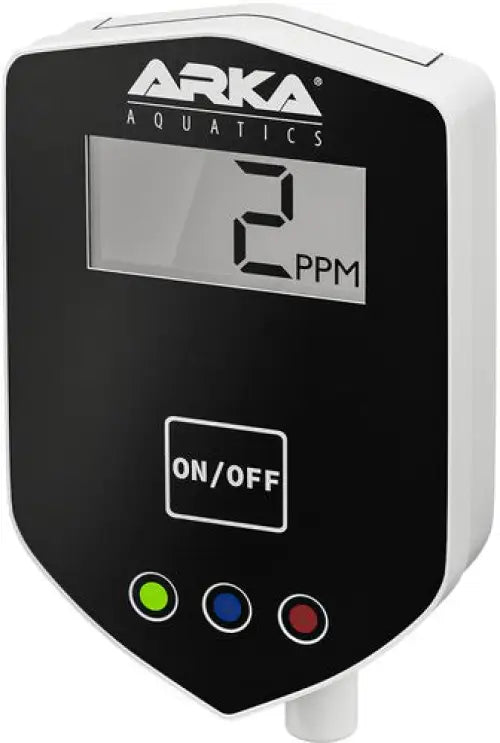

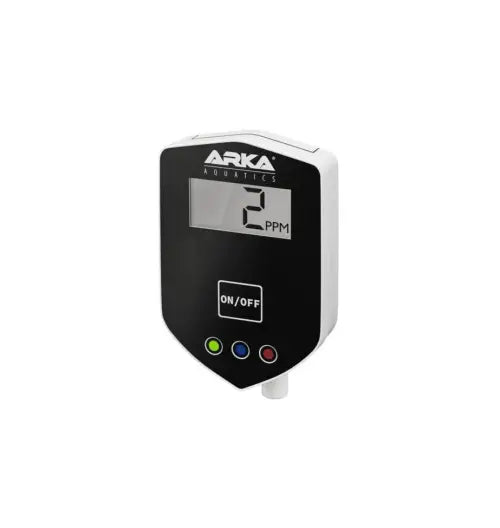

myAQUA® Inline TDS meter by Arka is a precise in-line meter that measures and determines the amount of dissolved substances (TDS) in water. It comes with ¼” connections that are suitable for use with standard reverse osmosis systems.
In addition to an LED screen that displays the TDS values measured, the device has a water pollution level indicator with green, blue and red lights:
green: 0-50ppm
blue: 51-300ppm
red: > 300 ppm
Technical specifications:
TDS 0-999ppm
Accuracy +/- 2%
Standby power consumption 100uA
Power consumption 2.5mA
Operating temperature range 0-50℃
Assembly:
Remove the blue safety rings from the adapters.
Connect both adapters to the device and the hoses.
Now put the safety rings back in place.
Operation:
Turn on the device by pressing the ON/OFF button.
Turn on the water supply.
The device starts measuring.
Note: The meter is NOT waterproof. Contact with water can cause a short circuit.
Downloads
User Guide_DE_EN
