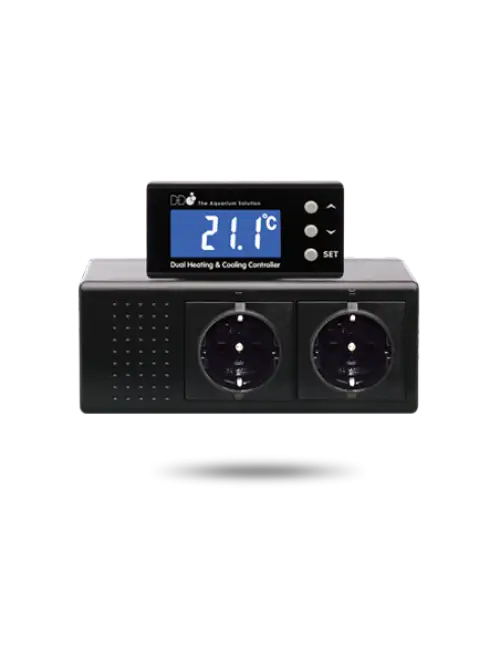

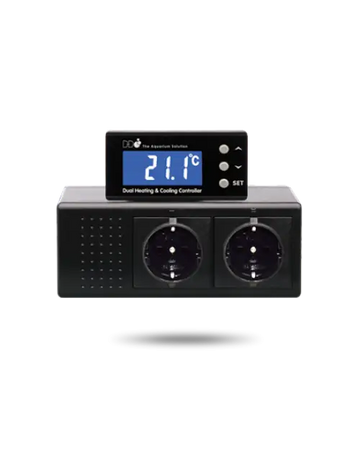

The dual digital temperature controller is designed to allow precise control of the temperature in an aquarium and has 2 modes that allow you to control both heating and cooling simultaneously.

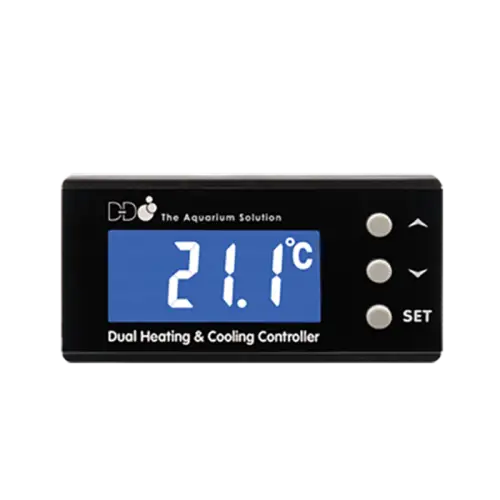

Dual power supply connection - one outlet for heating control and the other for fan / chiller control. Temperature sensor display - used to set and display temperature and alarms and to measure temperature. The plastic coated temperature sensor is waterproof and suitable for use in a marine aquarium.

D&D EU Dual Temp Controller specifications

• Plug and play - no wiring required.
• Heating / cooling can be set to within 0.3 ° C of the target temperature, e.g.
• Control range from 24.7 - 25.3 ° C (with set temperature of 25 ° C).
• Audible and visual alarm function, eg An alarm sounds when the temperature is lower than
• 24 ° C or higher than 26 ° C (with an alarm set to 1 ° C).
• 2 m long plastic coated temperature sensor with mounting suction cup.
• Heating control (resistive load, such as heating) max. 1600 W.
• Cooling control (inductive load, such as a cooling machine) max. 600 W.
• Display: blue-lit LCD - permanently lit.
• Switch off the memory function
• Makes an ideal operating platform for our Schego Titanium aquarium heater

Size:

• Screen panel: 95 mm x 50 mm x 15 mm
• Dimensions of control contact: 160 mm x 70 mm x 45 mm

Technical parameters:

• Temperature measuring range: -40 - 99 degrees C
• Temperature difference setting range 0.3 - 16.0 ° C
• Alarm function range: 0.5 - 5 ° C from the set temperature
• Resolution: 0.1 ° C
• Accuracy: ± 1 ° C (-30 - 50 ° C)
• Power supply: 220VAC ± 10%, 50 / 60Hz
• Humidity range: 20% - 85%
• Power consumption: ≤3W
• Operating temperature range: - 10 - 60 degrees C
