HI-98195 Multi-parameter pH /ORP/ EC Waterproof Meter

Ei arvioita
€1.684,95
0
Määrä:
Tuotekoodi:
HI-98195
Apple Pay Google Pay Mastercard Visa American Express Klarna Generic

  • TOIMITUS JA NOUTO

    Varastotuotteet lähetetään yleensä yhden arkipäivän kuluessa.

    Kuljetus kestää tavallisesti 1–3 arkipäivää.

    Tilaustuotteiden arvioitu toimitusaika on noin 1–2 viikkoa. Jos tilauksessa on sekä varasto- että tilaustuotteita, koko tilaus lähetetään, kun kaikki tuotteet ovat saatavilla.

    Tuotteet voi myös noutaa Korallifarmin myymälästä.

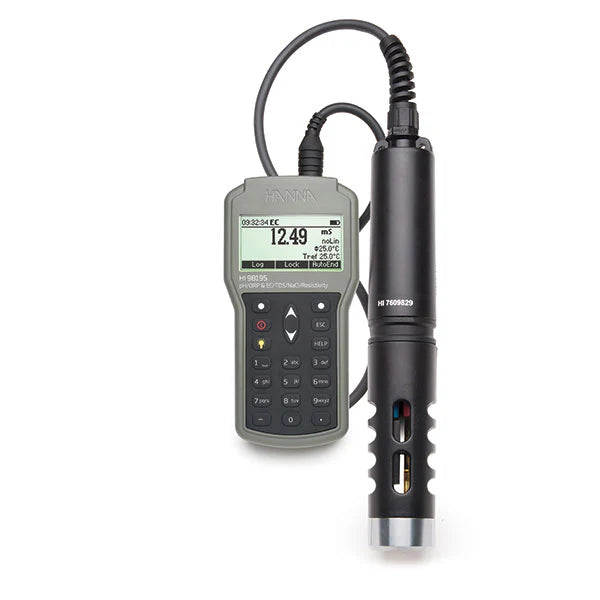

HI-98195 provides multi-parameter measurement in a compact and rugged IP67 waterproof enclosure. Ideal for demanding application, this meter features our rugged, quick connect multi-function probe with field replaceable sensors.

A backlit, graphic LCD provides easy to read resolution even in low-lit areas. A combination of dedicated and soft keys allows easy, intuitive operation in a choice of languages.

HI-98195 allows users to store up to 45,000 continuous or log-on demand samples with logging intervals from one second to three hours. Logged data can be later transferred to a PC with the HI-920015 micro USB cable and Hanna software.

Comprehensive GLP data includes data from the last five calibrations. The contextual Help Menu can be accessed to obtain on-screen information and assistance about each feature at the touch of a button.

pH specific features

  • Up to three point calibration with five standard buffers and one custom buffer available

EC/TDS/Resistivity specific features

  • Single point calibration from six standards (84µS/cm, 1413 µS/cm, 5.00 mS/cm, 12.88 mS/cm, 80 mS/cm, 111.8 mS/cm)
  • Automatic temperature compensation configurable temperature coefficient range from 0.00 to 6.00%/°C
  • Choice of reference temperatures at 20 or 25°C
  • Absolute conductivity can be displayed along with the temperature compensated value
  • Auto ranging
  • Practical Salinity Scale (PSU) based on conductivity calibration

Key features

  • IP67 rated waterproof, rugged enclosure for meter, IP68 for probe
  • Colour-coded, field replaceable sensors
  • Auto sensor recognition
  • Automatic logging of up to 45,000 samples
  • Store measurement data at the press of a button
  • On-screen context specific help is readily available at the press of a button
  • PC connectivity via opto-isolated micro-USB with Hanna software
  • Up to 360 hours of battery life, powered by (4) 1.5Vbatteries
  • The HI-7698195 probe features a quick connect DIN connector that makes a waterproof connection with the meter

IP68 - Electrode is dust-tight and protected against the effects of continuous immersion in water beyond 1m.

PC Interface - Download test results to a computer programmed with HANNA’s Windows® compatible software (HI-92000), directly from equipment via a USB port or a RS232 cable outlet.





pH/mV Range 0.00 to 14.00 pH/± 600.0 mV
Resolution 0.01 pH/ 0.1 mV
Accuracy ±0.02 pH/ ±0.5 mV
Calibration automatic one, two or three points with automatic recognition of five standard buffers (pH 4.01, 6.86, 7.01, 9.18, 10.01) or one custom buffer
ORP Range ±2000.0 mV
ORP Resolution 0.1 mV
ORP Accuracy ±1.0 mV
ORP Calibration automatic at one custom point (relative mV)
EC Range 0 to 200 mS/cm (absolute EC up to 400 mS/cm)
EC Resolution Manual: 1μS/cm; 0.001 mS/cm; 0.01 mS/cm; 0.1 mS/cm; automatic: 1μS/cm from 0 to 9999 μS/cm; 0.01 mS/cm from 10.00 to 99.99 mS/cm; 0.1 mS/cm from 100.0 to 400.0 mS/cm; automatic mS/cm: 0.001 mS/cm from 0.000 to 9.999 mS/cm; 0.01 mS/cm from 10.00 to 99.99 mS/cm; 0.1 mS/cm from 100.0 to 400.0 mS/cm
EC Accuracy ±1% of reading or ± 1μS/cm whichever is greater
EC Calibration automatic single point, with six standard solutions (84μS/cm, 1413μS/cm, 5.00mS/cm, 12.88 mS/cm, 80.0 mS/cm, 111.8 mS/cm) or custom point
TDS Range 0 to 400.0 ppt (g/L) (the maximum value depends on the TDS factor)
TDS Resolution manual: 1 ppm (mg/L); 0.001 ppt (g/L); 0.1 ppt (g/L); 1 ppt (g/L); automatic: 1ppm (mg/L) from 0 to 9999 ppm (mg/L); 0.01 ppt (g/L) from 10.00 to 99.99 ppt (g/L); 0.1 ppt (g/L) from 100.0 to 400.0 ppt (g/L); automatic ppt (g/L): 0.001 ppt (g/L) from 0.000 to 9.999 PPT(g/L) from 10.00 to 99.99 ppt (g/L); 0.1 ppt (g/L) from 100.0 to 400.0 pp (g/L)
TDS Accuracy ±1% of reading or ±1 ppm (mg/L) whichever is greater
TDS Calibration based on conductivity or salinity calibration
Resistivity Range 0 to 999999 Ω.cm; 0 to 1000.0 kΩ.cm; 0 to 1.0000 MΩ.cm
Resistivity Resolution dependent on resistivity reading
Resistivity Calibration based on conductivity or salinity calibration
Salinity Range 0.00 to 70.00 PSU
Salinity Resolution 0.01 PSU
Salinity Accuracy ±2% of reading or ±0.01 PSU whichever is greater
Salinity Calibration based on conductivity calibration
Seawater σ Range 0.0 to 50.0 σt, σ0, σ15
Seawater σ Resolution 0.1 σ t, σ0, σ 15
Seawater σ Accuracy ±1 σ t, σ0, σ 15
Seawater σ Calibration based on conductivity or salinity calibration
Temperature Range -5.00 to 55.00°C
Temperature Resolution 0.01°C
Temperature Accuracy ±0.15°C
Temperature Calibration Automatic at one custom point
Additional Specifications
 Maximum probe immersion Depth - 20 metres
  Temperature compensation automatic from -5 to 55°C
  Logging Memory 45,000 records (continuous logging or log-on demand of all parameters
  Logging Interval one second to three hours
 PC Connectivity via USB (with Hanna PC software)
  Environment 0 to 50°C; RH 100% IP67
  Battery Type/Life 1.5V AA batteries (4)/approximately 360 hours of continuous use without backlight (50 hours with backlight)
  Dimensions/Weight 185 x 93 x 35.2 mm/400g

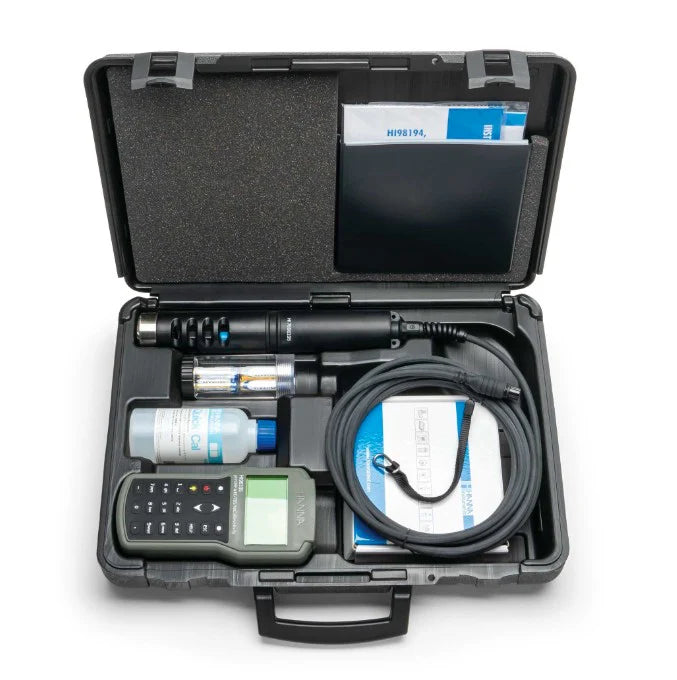

Ordering information: HI-98195 is supplied with HI-7698195/4 multiparameter probe, HI-7698194-1 pH/ORP sensor, HI-7698194-3 EC sensor, HI-9828-20 quick calibration solution, HI-76981952 probe maintenance kit, HI-76981943 calibration beaker, HI-9298194 Hanna PC software, HI-920015 micro USB cable, 1.5V AA batteries (4), instruction manual, quick start guide, quality certificate, and rugged carrying case with custom insert.
Valmistaja: Hanna Instruments
Tuotekoodi: HI-98195
Paino: 1.5 kg
